Ideal training, simulation and demonstration model for training and industrial automation
Already completed, stable training model
Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
Optionally available in the 9V standard voltage as well as in the worldwide 24V industrial standard
CAUTION: absolutely necessary for operation is a PLC control 24V
Inputs digital: 8
Outputs 24V: 8

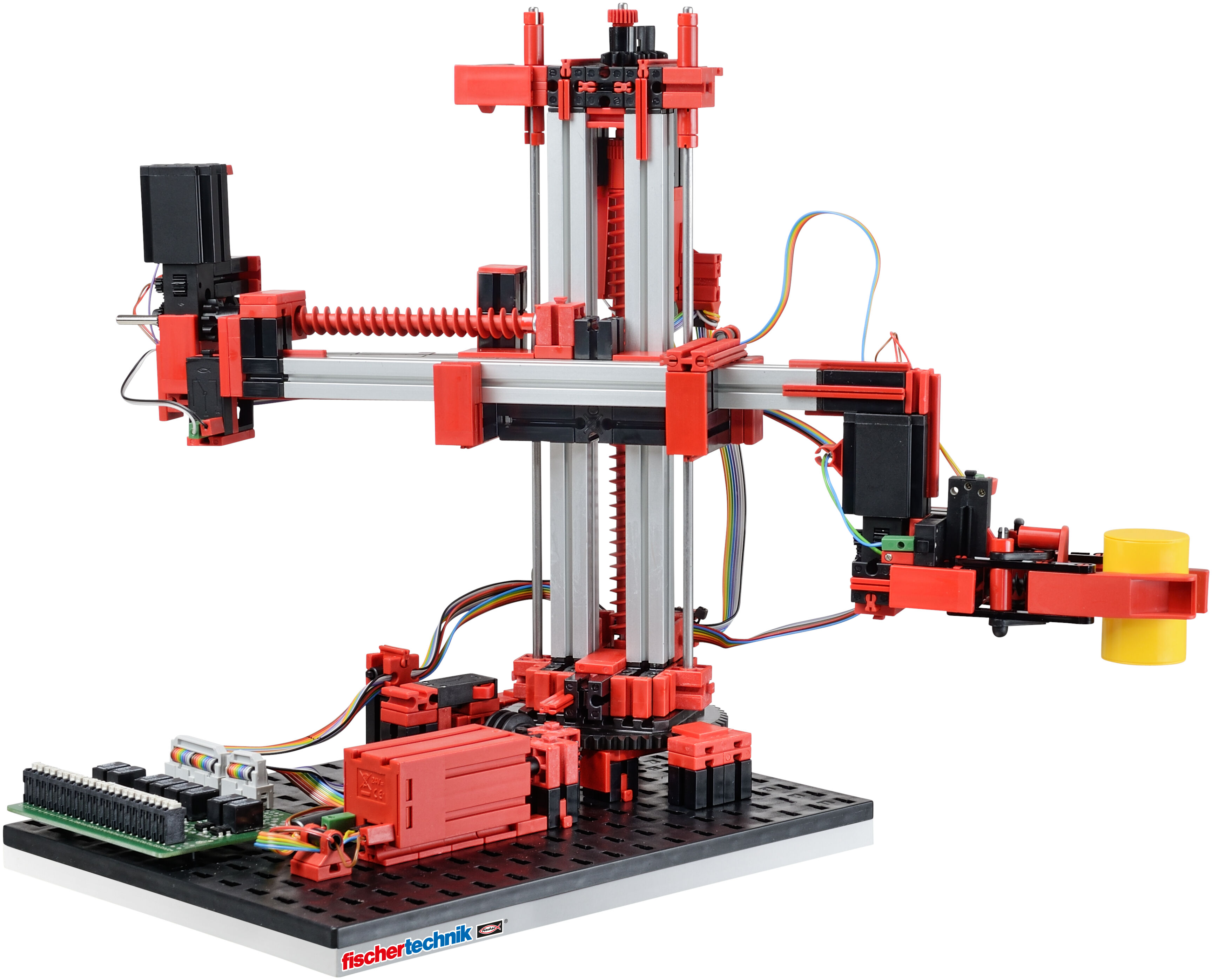

The 3-axis robot with gripping forceps quickly and precisely positions workpieces in three-dimensional space. Degrees of freedom: Axis 1: turn 180°, axis 2: forward/back 90 mm, axis 3: raise/lower 150 mm. The model can be ideally combined with training models "conveyor belt," "punching machine" and "conveyor line."
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.
