Ideal training, simulation and demonstration model for training and industrial automation
Already completed, stable training model
Mounted on a solid wooden plate, model packaged in a sturdy cardboard box
Optionally available in the 9V standard voltage as well as in the worldwide 24V industrial standard
CAUTION: absolutely necessary for operation is a PLC control 24V
Current consumption: I = ca. 0,9A
Inputs digital: 3
Fast counting inputs: 3 oder 6 (with direction detection)
Outputs 24V: 8

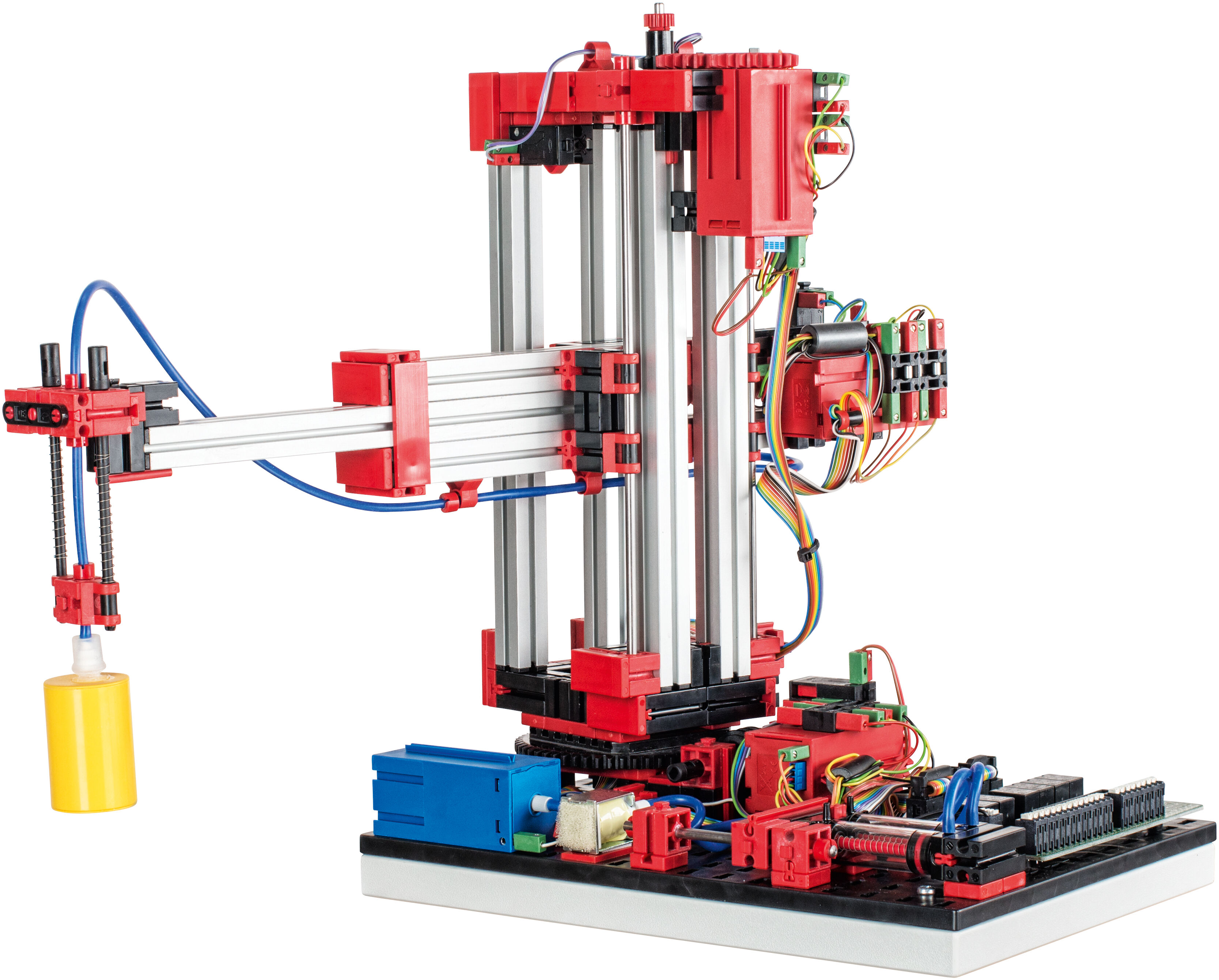

3-axis robot with vacuum gripper works quickly and precisely, positioning workpieces in three-dimensional space. Working range: x-axis 270°, y-axis (forwards/back) 140 mm, z-axis (up/down) 120 mm.
Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.
Additional Teaching Material:
